PUMPS WITH ELECTRIC MOTOR

MP PUMPS

 .



e Have All Kinds Of Flow Meter And Gear Pumps & Vanue Pumps.

Pump for Diesel and Oil Transfer



Ø    Vanue Pump

Ø     Vanue Pump Coupled with Electric Motor

Ø     Vanue Pump Coupled with Electric Motor

Ø     Vanue Pump Coupled with Diesel Engine

Ø     Vanue Pump For PTO



Ø    Gear Pump

Ø     Gear Pump With Diesel Engine Drive Skit

Ø     Gear Pump With Electrical Driver Skit

Ø     Diesel l Engine Pump

Ø     High Capacity Gear  Pump

 Ø      Pump with Diesel Engine

Ø      Pump with Patrol Engine

 .

PD METER

PD METER Ticket Printer

Mechanical Printer

Digital Printer

Laser Printer

Meter with printer

Flow meter with Printer

Fuel flow meter With Printer

Vane pump

Digital printer

Ovel meter with printer

R Ticket Printer

Mechanical Printer

Digital Printer

Laser Printer

Meter with printer

Flow meter with Printer

Fuel flow meter With Printer

Vane pump

Digital printer

Ovel meter with printer

 PUMP WITH  FLOW METER

 PUMP WITH FILTER

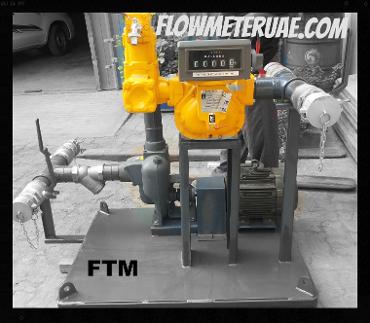

 Mp Pump With Pipe line lc meter filter printer

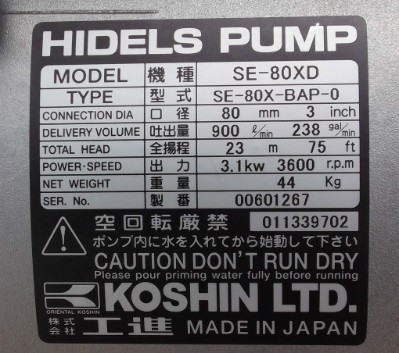

Robin  Koshin , honda koshin pump

.

.

 PUMPS

DIESEL PUMP

PATROL PUMP

OIL PUMP

BASE OIL PUMP



GENERAL

Flowteck Rotary Gear Pump type is a Rotary Positive displacement pump with positive pressure characteristic. The pump are capable of handling liquid of any viscocity. At high viscosity reduce slip but power increases. The pump has a self priming capability however some net positive suction head  is always required to avoid cavitations depending upon the liquid to be pumped and the pump speed.

POWER LOSSES

The Mechanical & Viscous both are internal power losses in gear pump. Mechanical losses have power required to overcome frictional drag of Rotating Part in pump & viscous losses is power required to overcome liquid viscous drag & shearing action of liquid, these are computed in Graph.

CONSTRUCTION

Rotary Gear Pump type construction with self or independently lub. needle roller bearing-bush with modified profile alloy steel. gas nitrided hardened gears in herringbone design mounted on hardened & ground shaft, leaded tin bronze wearing plate & with addjastb le type relief valve.

ADVANTAGES

Double Helical Herringbone gear design with high quality class mfg. ensure no side thrust, maintain constant volumetric efficiency and reduce noise level. Sleeve on shaft take maintance easy & economical. Reduce sleep & low leakage path by design to improve volumetric efficiency. Extra thick & hardened



Click the Image to view Larger

Flowtek Rotary Gear pump type  medium pressure pumps are capable of handling viscous liquid pressure
application up to 20 Bar. The self lubricated & independently lubricated needle roller bearing type pump is used for  clean viscous liquid and can be run at 1440 Rpm. The bush bearing version type RPBX type pump is used for semi viscous cn liquid & dirty liquid. Pump up to  " size run at 1440 Rpm and for higher size the speed should be reduced to 960 rpm or lower.


E- mail: flowtekuae@gmail.com

gear pump with electric motor coupling with EX proof Electric Motor
