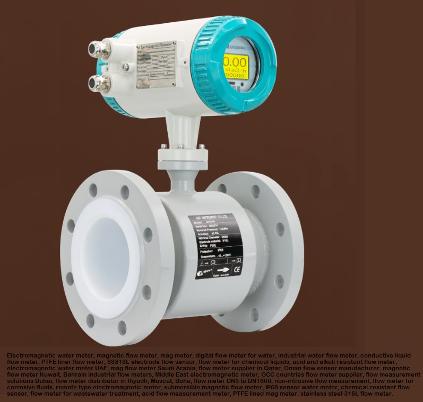

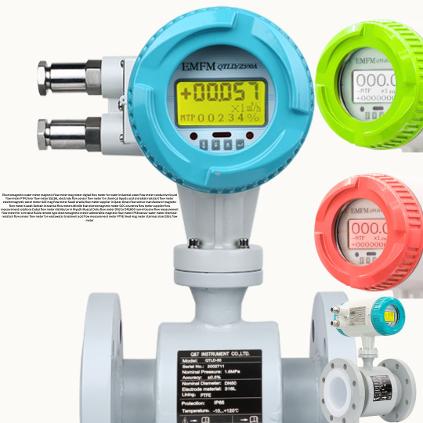

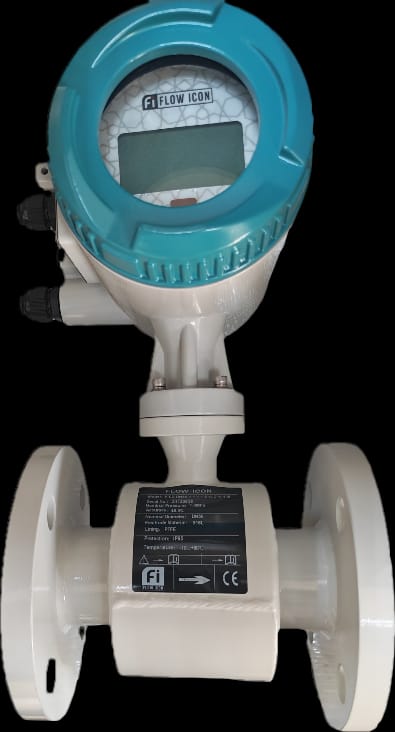

The FILD magnetic flow meter (also known as an electromagnetic flow meter, mag meter, or Fi Meter Flow Icon Meter) is widely used across Saudi Arabia, UAE, Qatar, Oman, Kuwait, and Bahrain due to its high accuracy, cost-effectiveness, and low-maintenance design. This advanced electromagnetic flow meter delivers reliable liquid flow measurement with minimal flow obstruction and no moving parts, significantly reducing wear, servicing needs, and long-term replacement costs.

Engineered to handle a broad range of conductive liquids—including water, wastewater, chemicals, and slurries—the FILD flow meter is ideal for industrial, municipal, and agricultural applications. We provide meters in various sizes, with multiple liner and electrode configurations designed for harsh environments and specialized fluid requirements.

As a trusted Middle East flow meter supplier, we offer fast delivery and local support throughout United Arab Emirates, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain. Whether you're located in Dubai, Riyadh, Doha, Muscat, or Manama, the FILD mag meter is your dependable solution for accurate, maintenance-free flow monitoring.

🌊 FILD Electromagnetic Flow Meter – Technical Specifications

📏 Size Range

• DN3 – DN3000 mm (1/8" – 120")

🎯 Accuracy & Velocity

• Accuracy: ±0.5% of reading (flow velocity ≥ 0.5 m/s); ±0.2% optional

• Velocity Range: 0.1 – 15 m/s

• Repeatability: ≤ 0.17%

🧪 Conductivity Requirements

• > 5 µS/cm (standard)

• > 20 µS/cm for demineralized water

⚙️ Structure & Installation

• Type: Compact or Remote

• Remote Cable Length: 10m (standard), up to 100m (max)

• Protection Grades:

  • Transmitter: IP65 (standard), IP67 (optional)

  • Sensor: IP65, IP68 (submersible, only for remote)

⚡ Power Supply

• 85–250 VAC (50/60 Hz)

• 20–36 VDC

• Power Consumption: <20W

📤 Signal Output

• Analog: 4–20 mA (load resistor 0–750Ω)

• Frequency Output: 1–5000 Hz (forward & reverse flow)

• Alarm Outputs: 2 x isolated open collector transistors (OCT)

🔌 Communication Protocols

• Standard: RS485, MODBUS RTU

• Optional: HART, GPRS, PROFIBUS

📺 Display

• Type: LCD, 128 x 128 mm, 3-line display

• Operation: 4-button interface

• Ambient Temp (Display): -20°C ~ 60°C

• Ambient Temp (Transmitter):

  • Compact: -20°C ~ 80°C

  • Remote: -20°C ~ 120°C

🌡️ Fluid Temperature (Liner Dependent)

• PTFE: -20°C ~ 150°C (DN15–DN1600)

• FEP: -20°C ~ 120°C (DN3–DN1800)

• PFA: -20°C ~ 160°C (DN3–DN800)

• Polyurethane: -10°C ~ 60°C (DN40–DN1600)

• Neoprene: -10°C ~ 80°C (DN40–DN3000)

• Hard Rubber: -10°C ~ 80°C (DN40–DN3000)

• Ceramic: -20°C ~ 180°C (DN15–DN200)

🧲 Electrode Materials

• SS316L, Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum-Iridium

🏗️ Construction Materials

• Measuring Tube: SS304

• Flange & Housing: Carbon steel (standard), SS304 / SS316 (optional)

• Transmitter Housing: Aluminum alloy with epoxy coating

🔩 Pressure Ratings

• PN: PN10 / PN16 / PN25 / PN40

• JIS: 10K / 20K / 30K

• ANSI: 150#, 300#, 600#

• High-Pressure Option: Up to 42 MPa / ANSI 2500# (custom)

🔧 Functionality & Alarms

• Measured Data: Instantaneous flow, total flow, velocity

• Alarms: High/low limit, excitation loss, empty pipe, self-diagnostics

• Totalizers:

  • Forward Flow

  • Reverse Flow

  • Net Flow

🔄 Units of Measurement

• L/s, L/min, L/h

• m³/s, m³/min, m³/h

• UK Gallons, US Gallons per second, minute, hour

• kg/s, kg/min, kg/h

• t/s, t/min, t/h

🌐 Language Options

• English, Arabic (optional), Chinese, Italian, Portuguese, French, Spanish, Korean
